WINDLASS TENSIONER

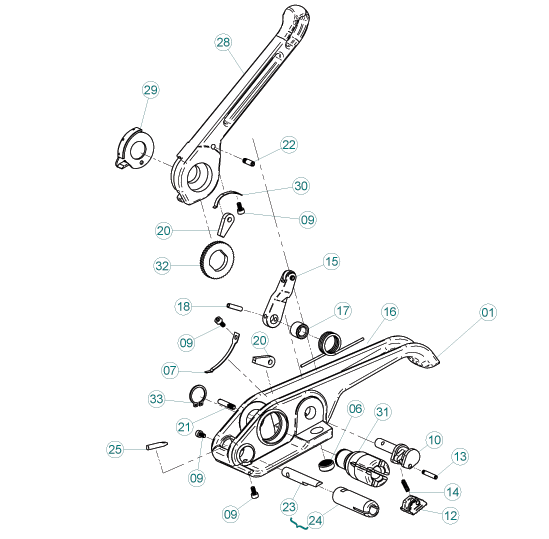

| parts list | |||||
|---|---|---|---|---|---|
| Part No. | Part Name | Qty./Tool | Part No. | Part Name | Qty./Tool |
| #01 | Base |
1 | #20 | Handle Toggle | 2 |
| #06 | Base Plug | 1 | #21 | Base Shaft | 1 |
| #07 | Base Toggle Spring | 1 | #22 | Handle Shaft | 1 |
| #09 | Screw | 4 | #23 | Cutter | 1 |
| #10 | Leg | 1 | #24 | Cutter Housing | |
| #12 | Gripper Plate | 1 | #25 | Blade Level | 1 |
| #13 | Gripper Screw | 1 | #28 | Handle | 1 |
| #14 | Foot Spring | 1 | #29 | Nose Hook | 1 |
| #15 | Lever Release Assembly | 1 | #30 | Handle Spring | 1 |
| #16 | Main Spring | 1 | #31 | Windlass | 1 |
| #17 | Main Spring Bushing | 1 | #32 | Ratchet Wheel | 1 |
| #18 | Spring Pin | 1 | #33 | Clip Ring | 1 |
| Keep tool well oiled and cleaned. Please order parts by model, part number, and part name. | |||||
